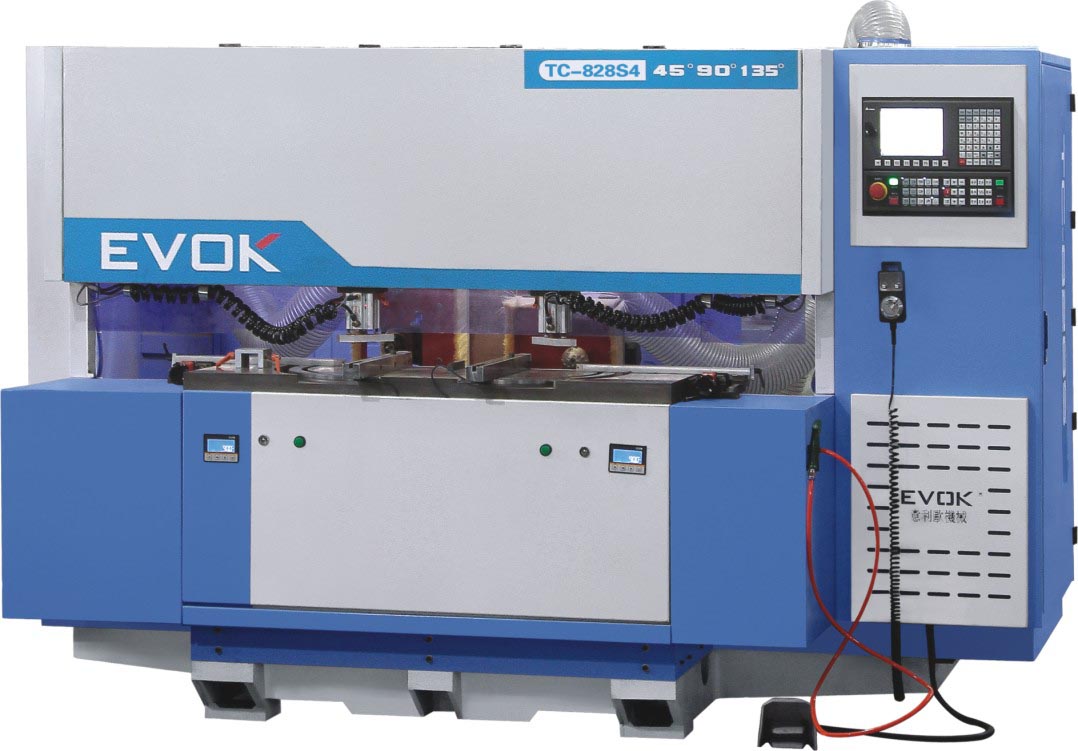

TC-828S4 多功能數(shù)控榫接機
Features:
4 spindles correspond to 4 cutter heads without changing cutter.
Max processing length is1.2meter. Customized acceptable
THE TECHNICAL PARAMETER
◎Power source : 380V/50Hz/3HP+N
◎Panel width for 45°: 40-120mm
◎Panel width for 135°: 40-150mm
◎Panel height: 20-70mm
◎Air pressure: 0.6-0.8Mpa
◎Total power: 25KW
◎Machine weight: 2600KG
◎Machine size: 2900*1550*1850mm
